A print-in-place hinge — printed as one solid object that flexes open afterwards — is the most satisfying trick in desktop 3D printing. It is also the easiest to ruin. Too-tight a gap and the parts fuse; too-tight an angle and lightweight PLA snaps. Here is the design, material and fit recipe that works every time.
What Print-in-Place Actually Means
Print-in-place parts are modelled as an interlocking assembly and printed as a single piece, relying on calibrated live clearances so adjacent geometry never welds together. Living hinges use thin, flexible material bridges that bend instead of breaking. Both demand the same three controls.
The Three Controls That Decide Success
| Control | Typical Setting | Why It Matters |
|---|---|---|
| Horizontal gap | 0.3–0.5 mm live clearance | Too tight = fused; too loose = rattles |
| Layer cooling | High fan on PLA/PETG | Keeps bridge crisp, stops sagging into gap |
| Speed at gap layer | 60–80% of normal | Reduces stringing that closes clearance |
Material Selection by Joint Type
Hard-Material Hinges (PLA, PETG, ABS)
A classic pin-and-socket hinge uses a printed "pin" surrounded by a socket. Because both are printed, the horizontal pin meets the socket in a circular gap — use press-fit clearances of 0.3–0.4 mm and let the part cool fully before forcing it free.
- PLA+ — stiff, low-cost, forgiving for toy hinges and lids.
- PETG — tougher and slightly flexible; better for constant-motion joints.
- ABS — ductile and heat resistant, but demands an enclosure to avoid warping.
Living Hinges (TPU)
For a finger-like flex that survives thousands of cycles, nothing beats a real flexible polymer. A thin 0.8–1.2 mm TPU bridge attached to stiff PLA ends combines movement with rigidity.
- TPU 85A — medium-flex, prints easily, ideal for wall-thin living hinges.
- Print TPU slowly (15–25 mm/s), keep the fan low, and increase the gap slightly because it compresses under pressure.
The Fit-First Workflow
- Print a clearance test with 0.2, 0.3, 0.4 and 0.5 mm gaps before the real part.
- Match the winning gap to your printer's dimensional behaviour.
- Add a single-layer raft only if first-layer squish is fusing the gap floor.
- For living hinges, align the flex direction perpendicular to layer lines.
- Cool the finished part for 10 minutes before first flex — hot parts tear.
When to Choose a Separate Fastener
If a joint must bear real load, a printed hinge is often the wrong tool — a brass insert, a M3 bolt, or an off-the-shelf butt hinge carries force far better. Reserve print-in-place for low-load, high-style parts: phone stands, foldable lampshades, articulated dragons, jewellery boxes.

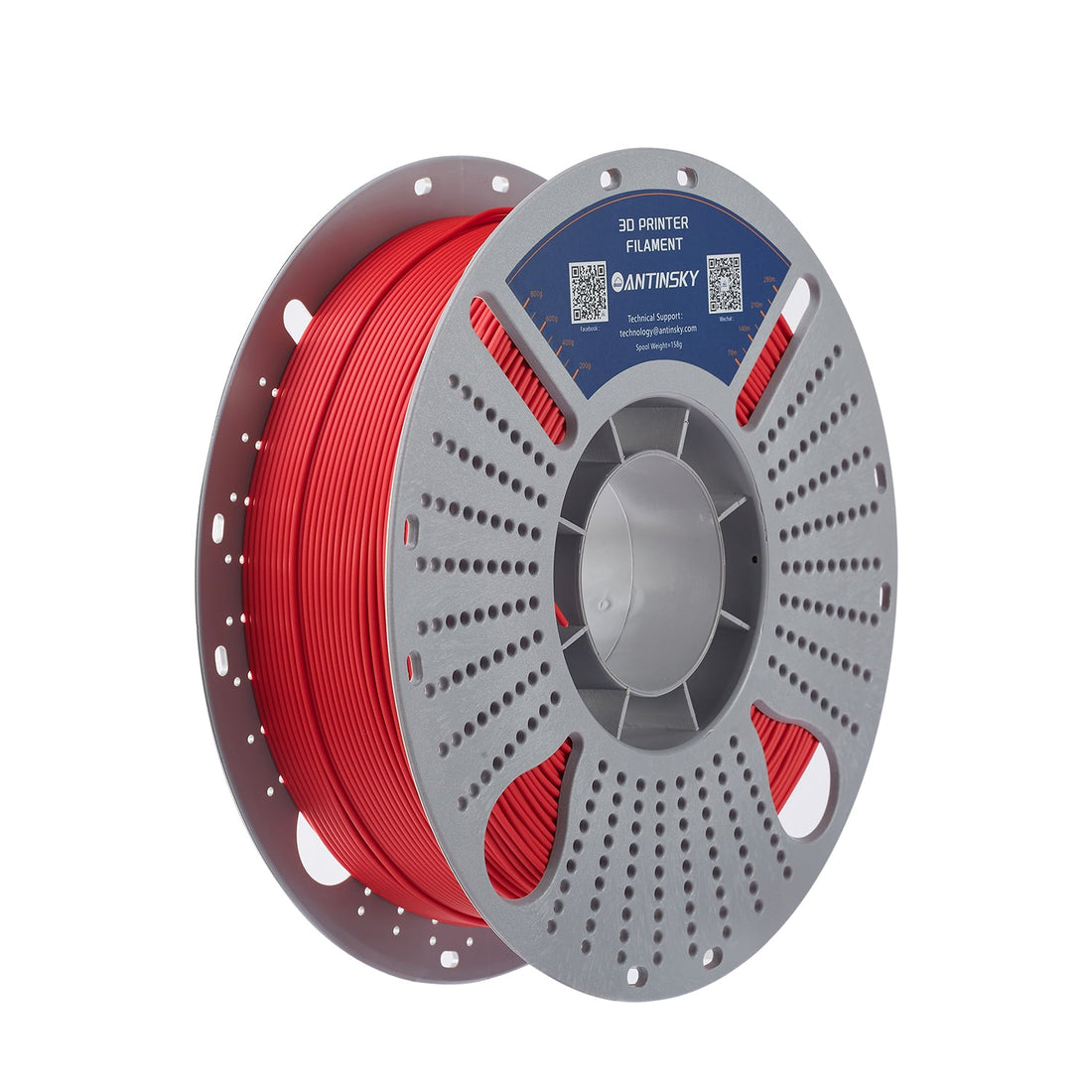

Which spool for which job? Keep the four-material foundation ready on the shelf: PLA+, PETG, ABS and TPU. Then let the machines do the moving.
