Most resin print failures are not caused by a bad printer — they are caused by how you orient and support the model. A resin printer cures an entire cross-section against the LCD, and every time a layer releases, it peels the full footprint away from the film. That peel is the physics you are fighting. Understand it and you can make nearly any part print first-time.
The Four Forces at Play
- Suction force – the larger the cross-section, the harder the cured layer sticks to the film
- Gravity – resin is heavy; unsupported overhangs sag and peel mid-print
- Peel stress – repeated release can tear thin walls or delaminate an area
- Layer area – big flat surfaces trap resin pockets and create defects
Orient Every Part at an Angle
The single highest-impact habit is to tilt the model. A part standing flush to the build plate or running parallel to it creates a huge layer area on every slice. Rotate it 20–45° on both axes so each layer's footprint is smaller and staggered. The benefits:
- Dramatically reduced suction force per layer
- Less visible layer stacking on flat outer faces
- Fewer trapped-resin pockets inside cavities
- Cleaner transitions at overhangs and details
Where Supports Actually Matter
Supports do more than hold overhangs; they distribute peel force and anchor the print to the plate. Best practice:
- Raft for all small parts – a few extra base layers dramatically improve first-layer yield
- Angle any point that faces the plate back toward support contact
- Add supports to the lowest points first, then work upward, never leaving a detail hanging
- Use thicker contact points on heavy parts, and lighter ones on fine detail so they snap off cleanly
A Selection of Resins That Match the Job
| Resin | Character | Best Use |
|---|---|---|

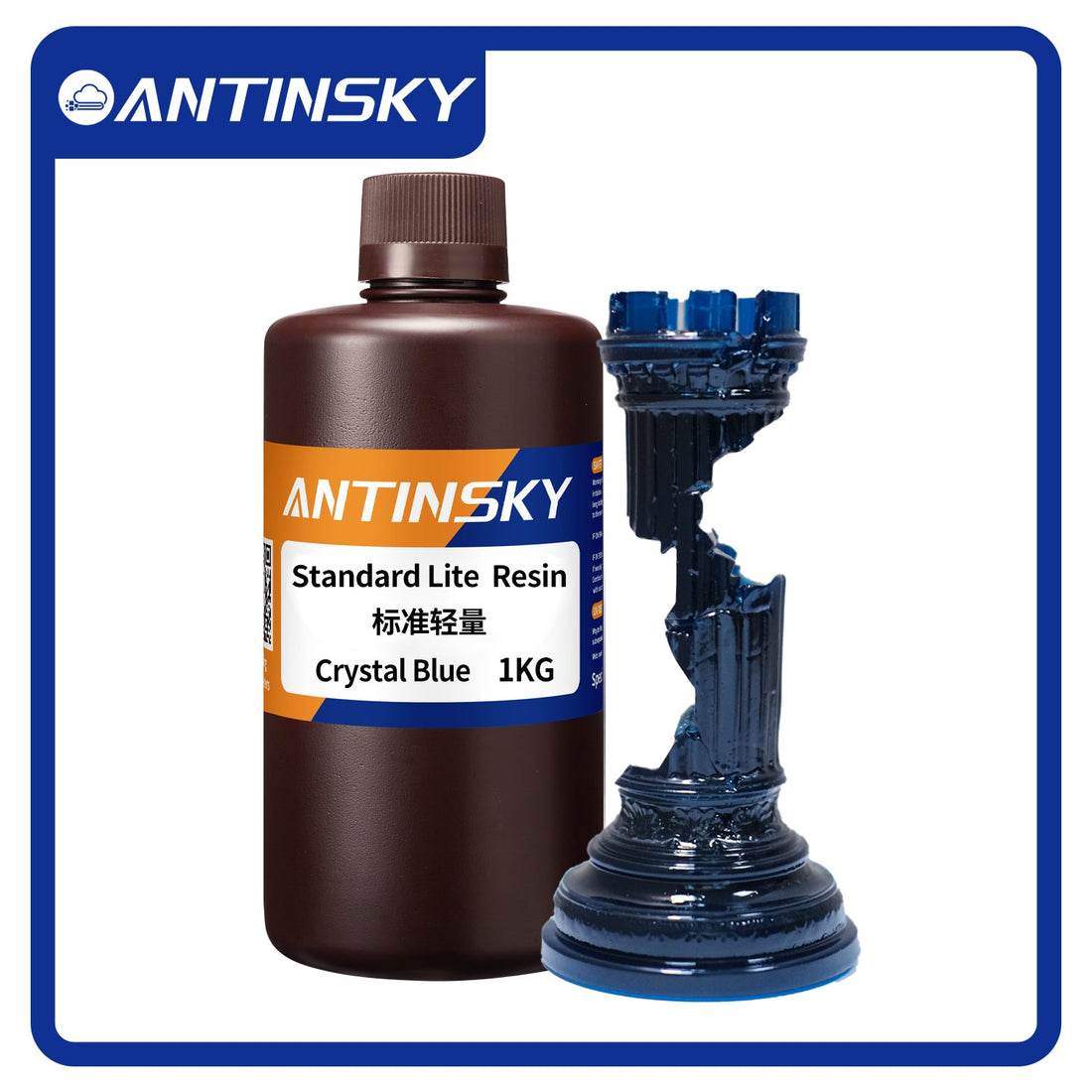

| Standard Lite Resin 1kg | Fast, low-odour, translucent options | Everyday prototypes, display parts |
| Standard Resin 1KG | Balanced strength and detail | General all-round printing |
| Standard Tough Resin | Impact-resistant | Clips, shells, parts that take knocks |
Before You Press Print: A 30-Second Check
| Check | Pass / Fail |
|---|---|
| Model tilted at 20–45°? | Fail = re-orient |
| Every downward-facing point supported? | Fail = add supports |
| Raft enabled for small/short parts? | Fail = enable raft |
| No flat face parallel to the plate? | Fail = rotate |
| Resin topped up above minimum line? | Fail = refill |
Spend two extra minutes in orientation and support settings and you will spend far less time scraping failed prints out of the vat. Order your next resins from the ANTINSKY resin range at InnoStation 3D and let the physics work for you.
