FDM Bed Adhesion and Leveling: The Foundation of Every Great Print
Ask any experienced 3D printing enthusiast what causes the most failed prints, and the answer will almost always be the same: first-layer adhesion. A poor first layer leads to warping, layer shifting, and eventually, a tangled mess of plastic on your hotend. This guide covers everything you need to know about bed leveling and adhesion — and how ANTINSKY filaments can help reduce your failure rate.
Bed Leveling: The Prerequisite
Before adjusting any adhesion aids, the bed must be level. Modern printers have simplified this dramatically:
Auto Bed Leveling (ABL)
Most printers from Bambu Lab, Creality, and Prusa now include inductive or strain-gauge sensors that map the bed surface. Even with ABL, follow these best practices:
- Always preheat the bed for 5+ minutes before starting ABL — thermal expansion changes the bed geometry
- Check Z-offset manually using a piece of paper (or feeler gauge at 0.10mm)
- Run ABL at the actual print temperature — a bed at 60C is a different shape than at 25C
Manual Tramming (for older printers)
- Heat bed to print temperature
- Home all axes
- Using paper method, adjust each bed screw (front-left, front-right, rear-left, rear-right) until drag is consistent across all four corners
- Repeat the cycle — adjusting one corner affects the others
Build Plate Materials and When to Use Them
| Build Plate Surface | Best For | Tips |
|---|---|---|
| PEI Smooth | PLA, PETG, TPU | Clean with isopropyl alcohol between prints; PLA sticks well at 60C |
| PEI Textured | PLA, PETG, ABS | PETG releases easier from textured vs smooth PEI |
| Cold PEI (Garolite) | PLA only — no heating needed! | ANTINSKY Cold PEI Build Plate for Bambu Lab — energy efficient |
| Glass + Glue Stick | ABS, Nylon | Good for high-temp materials; let cool fully before removal |
| Flex Steel BuildTak | PLA, PETG | Easy print removal — flex the plate |
Temperature Tuning for Different Filaments
Getting the bed temperature right is critical. Here are the sweet spots for ANTINSKY filaments:
| Filament | Bed Temperature | Nozzle Temperature | Adhesion Aid |
|---|---|---|---|
| ANTINSKY PLA+ | 55-65C | 210-225C | None needed on PEI |
| ANTINSKY PETG | 70-80C | 235-255C | Glue stick as release agent |
| ANTINSKY ABS | 90-110C | 240-260C | Enclosure required + ABS slurry |
| ANTINSKY TPU 95A | 40-50C | 220-240C | Slow first layer (15-20mm/s) |
| ANTINSKY PLA+ HS | 55-65C | 215-230C | Optimized for high-flow hotends |
Common First-Layer Problems and Fixes
- Nozzle too close → Transparent first layer, ripples → Increase Z-offset by 0.02-0.05mm
- Nozzle too far → Stringy, non-adherent lines → Decrease Z-offset by 0.02-0.05mm
- Warping on corners → Use a brim (8-12mm width) or mouse ears
- Elephant's foot → First layer squish is excessive → Enable initial layer horizontal expansion (-0.2mm) in your slicer
- Lifting on tall prints → Inadequate chamber temperature or drafts → Use an enclosure and reduce part cooling fan to 0% for first 10 layers
Pro Tip: The Brim and Raft
For ABS and large PLA parts, a brim (5-15mm wide, 0 lines gap) dramatically increases surface contact area and prevents corner lifting. For nylon or polycarbonate, a raft provides a sacrificial base that ensures adhesion even on slightly unlevel beds. Most slicers (Bambu Studio, Orca Slicer, PrusaSlicer, Cura) include both options.

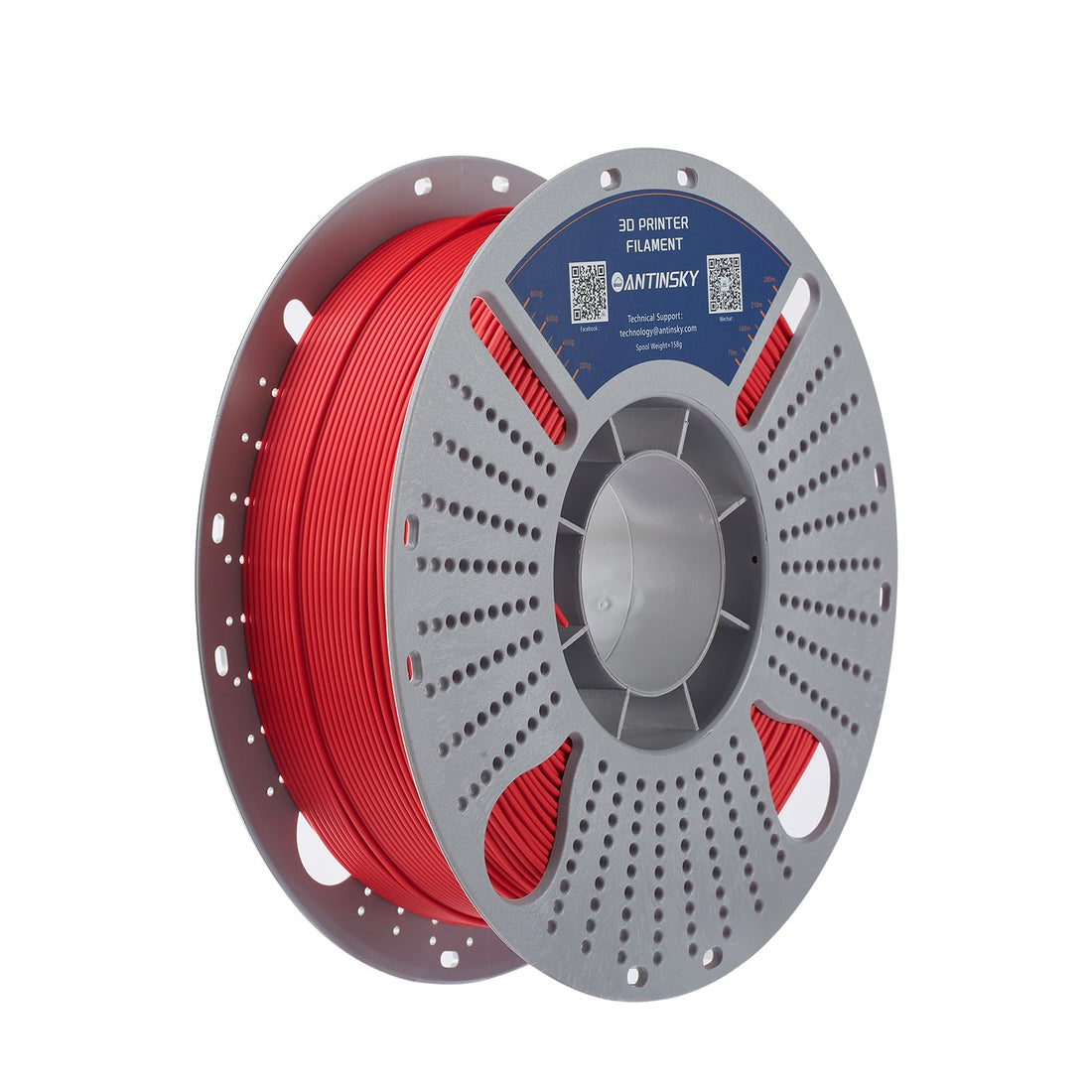

Start your next print with confidence using ANTINSKY PLA+ Filament — engineered for consistent first-layer adhesion across a wide temperature range. Available now at InnoStation 3D.
