You can have perfect exposure settings and still lose a print to bad orientation. In resin printing, the angle at which a part sits on the build plate is not a cosmetic decision — it determines how the peel force of each layer acts on the model, whether supports leave scars, and whether fine detail ends up facing the light or buried against the plate. Get orientation right and your prints look sharper with fewer failed attempts. Get it wrong and even a great resin will fight you.
Why absolute vertical is usually wrong
When a flat surface sits parallel to the build plate, every layer is a huge cross-section, so the film has to peel away a large area all at once. That creates suction, flex, and often a flat bottom face covered in supports. Tilting the part 20 to 35 degrees is the standard fix.
What the tilt actually does
- Smaller layer cross-sections — each new layer adds less area, so peel force drops and printing stays accurate.
- Detail faces away from the plate — the crisp, visible face you care about points toward the light, not against the build plate.
- Cleaner interior — supports attach to a hidden edge or back, leaving your showcase surface untouched.
There is a trade-off: more tilt means slightly longer print time and a bit of stepping on angled surfaces. The right angle balances detail, time and support severity for each part.
Placement: spacing and suction control
Positioning is about more than fitting everything onto the plate. Every part must have room for peel — squeeze models too close together and the film can't release cleanly between them, dragging neighboring prints off their supports. Keep at least a few millimetres between parts, and rotate duplicates so their widest faces don't face each other.
Closed, cup-like geometries are the classic failure. A hollow, water-tight shape builds a vacuum with each layer. The fix is to add a drain hole angled toward the build plate so resin and air can move, or to orient the opening so fluid can escape as the part lifts.
Where supports belong
Supports are a scaffold that holds the part as it prints and a potential cosmetic cost when you remove them. The strategy is simple:
- Tilt so supports land on a non-critical surface, ideally a back edge or the underside that nobody sees.
- Use lighter supports on fine detail and heavier ones only where the part needs real structural holding power.
- Angle delicate features up instead of hanging them from below — thin, spindly geometry is far more stable when it grows upward from a strong base.

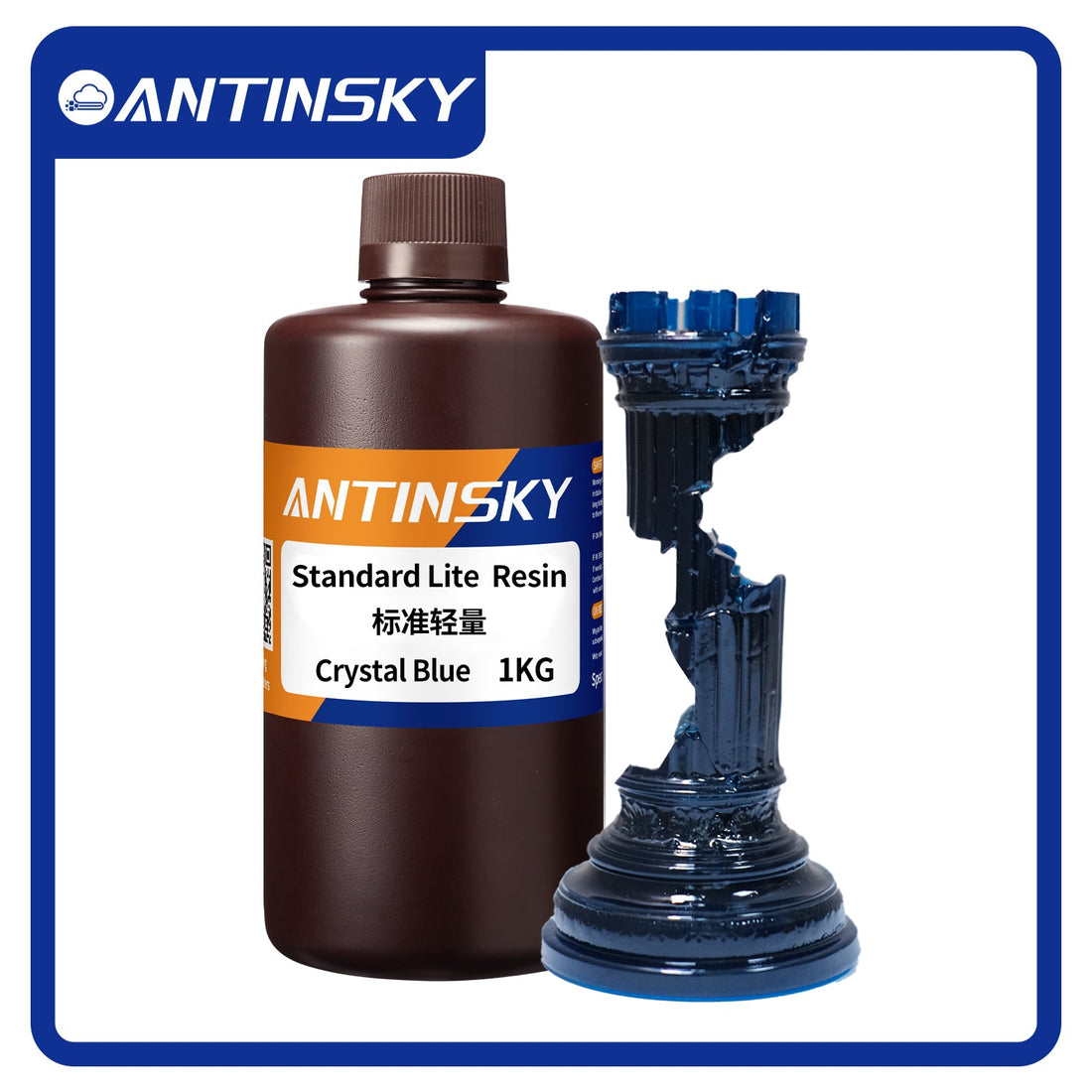

For a fast, balanced everyday material that responds predictably to these orientation rules, ANTINSKY Standard Lite Resin 1KG is an excellent starting point: it prints crisp details, cures cleanly, and gives you consistent behavior while you dial in your supports and angles.
A quick orientation checklist
| Check | Why | Default |
|---|---|---|
| Largest flat face | Avoids suction and massive cross-sections | Never parallel to the plate |
| Detail orientation | Keeps showcase surface clean | Faces the light, away from plate |
| Drain hole on cups | Prevents vacuum trapping resin | Angled toward build plate |
| Support landing zone | Reduces visible scars | Hidden edge or back face |
| Spacing between parts | Lets the film release cleanly | Few mm minimum |
Wrap up
Orientation is the cheapest quality improvement available in resin printing — it costs nothing, yet it changes failure rates and surface finish more than almost any hardware upgrade. Take a minute in the slicer to tilt, add drain holes, and plan supports before you hit print. Combined with a consistent resin like ANTINSKY Standard Lite and clean post-processing, you will see noticeably sharper, cleaner parts from the very first plate.
